Technical Specifications
Main Dimensions &Performance Data |
d | 12 mm |
D | 37 mm |
B | 12 mm |
Cr | 8.32 rpm |
Cor | 4.15 rpm |
Fatigue load | 0.176 pu |
Reference speed | 48000 rpm |
limit speed | 30000 rpm |
Type | Deep groove ball bearing |

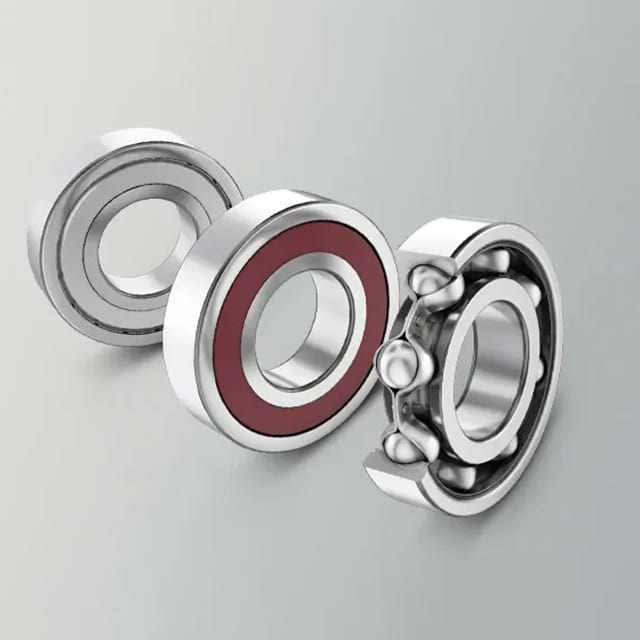

6300 deep‑groove ball bearing features enlarged ball elements and thicker cross‑section. It delivers superior load capacity than 6200 series with same bore size.

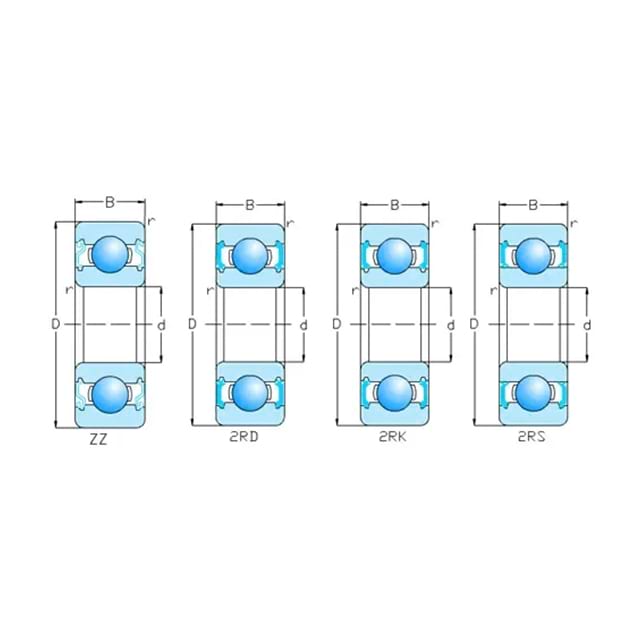

Stable running performance under medium‑speed and moderate shock conditions. Multiple sealing options: open, 2Z, 2RS. Standard metric dimension for convenient replacement. Ideal for air compressors, agricultural machines, water pumps and conveyor rollers.
