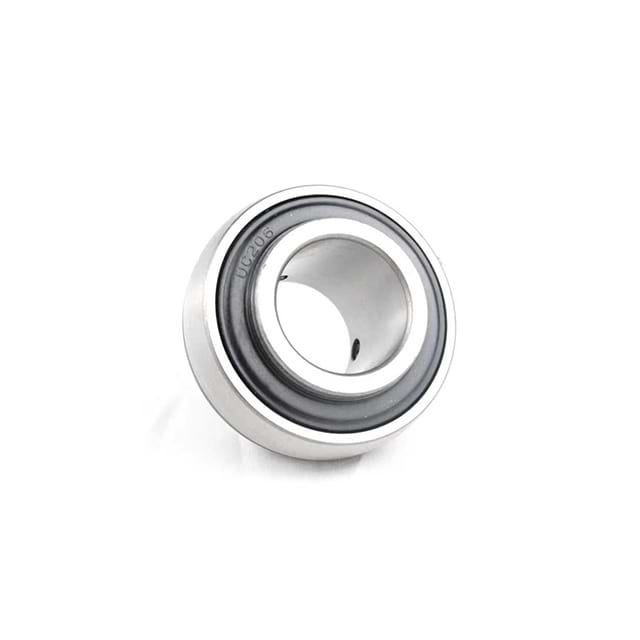

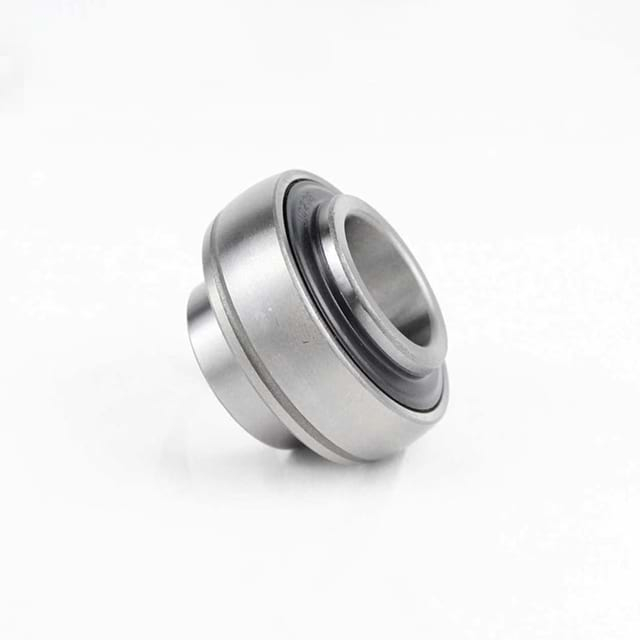

Welcome to the detailed technical presentation of the UC Series insert bearings, meticulously engineered to provide uncompromising reliability across a wide spectrum of industrial applications. Designed to serve as the critical rotational core for complex machinery, this series embodies the perfect synergy of advanced metallurgy, precision engineering, and robust environmental protection. Industrial operators constantly face the challenge of maintaining continuous production while mitigating equipment wear and tear. The UC Series addresses these exact pain points by delivering exceptional load-bearing capabilities and seamless integration into existing mechanical frameworks. By prioritizing operational stability and long-term durability, these bearings empower facility managers to optimize their production lines, reduce unexpected downtime, and achieve a higher return on their mechanical investments.

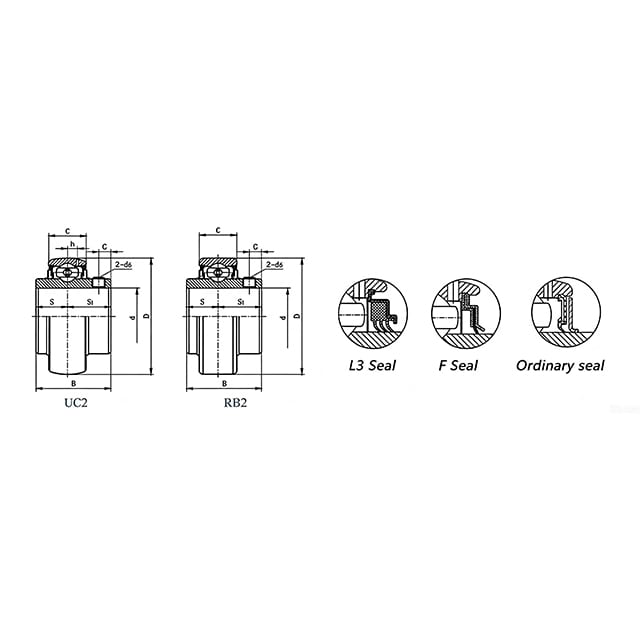

Bearing Model | Shaft diameter |
| Basic rated load (N) | Maximum rotational speed | Weight (kg) | ||||||||||
d | |||||||||||||||
(in.) | (mm) | D | B | C | S | S1 | G | h | ds | Dynamic load Cr | Static load Cor | UC | RB | ||
UCW201 | 1/2 | 12 | 40 | 27.4 | 15 | 11.5 | 15.9 | 4.2 | 3.5 | M6X0.8 | 4550 | 4780 | 4500 | 0.12 | - |
UC201 | 1/2 | 12 | 47 | 31 | 16 | 12.7 | 18.3 | 4.7 | 4.4 | M6X1 | 12800 | 6650 | 4000 | 0.21 | 0.22 |
UC205-14 | 7/8 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5.5 | 4 | M6X1 | 14000 | 7880 | 3400 | 0.23 | 0.24 |
UC206-18 | 1-1/8 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 5 | M6X1 | 19500 | 11200 | 2800 | 0.33 | 0.34 |
UC207-20 | 1-1/4 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.8 | M8X1 | 25700 | 15200 | 2400 | 0.53 | 0.55 |
UC208-24 | 1-1/2 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 6.3 | M8X1 | 29600 | 18200 | 2200 | 0.68 | 0.65 |
UC209-26 | 1-5/8 | 45 | 85 | 49.2 | 32 | 19 | 30.2 | 8 | 6.8 | M8X1 | 31850 | 20800 | 1900 | 0.68 | 0.68 |
UC210-30 | 1-7/8 | 50 | 90 | 51.6 | 23 | 19 | 32.6 | 9 | 6.5 | M10X1.25 | 35100 | 23200 | 1800 | 0.78 | 0.82 |
UC211-32 | 2 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 9 | 7.2 | M10X1.25 | 43550 | 29200 | 1600 | 1.19 | 1.22 |
UC212-36 | 2-1/4 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10.5 | 8.2 | M10X1.25 | 47800 | 32800 | 1500 | 1.54 | 1.58 |
UC213-40 | 2002/1/2 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 12 | 8 | M12X1.5 | 57200 | 40000 | 1400 | 1.83 | … |
UC214-44 | 2002/3/4 | 70 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 9 | M12X1.5 | 60800 | 45000 | 1300 | 2.01 | … |
UC215-47 | 2-15/16 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9 | M12X1.5 | 66000 | 49500 | 1200 | 2.22 | … |
UC216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | 10.3 | M12X1.5 | 71500 | 54200 | 1100 | 2.65 | … | |
UC217-52 | 2003/1/4 | 85 | 150 | 85.7 | 36 | 34.1 | 51.6 | 14 | 11 | M12X1.S | 83200 | 63800 | 1000 | 3.64 | … |
UC218-56 | 2003/1/2 | 90 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | 12 | M12X1.5 | 95900 | 71500 | 950 | 4.17 | … |
UC220 | 4 | 100 | 180 | 108 | 41 | 42 | 66 | 16 | 12.1 | M16X1.5 | 122000 | 92800 | 900 | 5.70 | |
At the core of our manufacturing excellence is the utilization of high-purity GCr15 bearing steel, a premium material renowned for its exceptional durability and structural integrity. Through a highly controlled and precision heat treatment process, these insert bearings achieve an extraordinary load-bearing capacity, making them ideal for heavy-duty transmission systems. The rigorous metallurgical refinement ensures superior wear resistance and an extended anti-fatigue lifespan, drastically reducing the frequency of component replacements. Whether your operations involve continuous material handling or intense agricultural processing, the inherent structural integrity of the UC Series guarantees consistent operational uptime. By focusing on maximizing equipment efficiency and minimizing unexpected mechanical failures, these insert bearings provide a foundational solution for modern machinery, ensuring that every rotational movement is supported by robust, industry-leading material science.
Operational environments in heavy industries are often plagued by airborne contaminants, moisture, and abrasive particles that can severely compromise mechanical components. To combat these challenges, the UC Series insert bearings are engineered with a highly effective dual-lip dust sealing mechanism, complemented by a robust steel slinger design. This advanced protective barrier acts as a frontline defense, offering multiple operational benefits:
This meticulous attention to environmental protection not only preserves the smooth rotation of the bearing but also significantly extends the overall service life of the machinery it supports. Facility managers and procurement specialists can rely on this superior sealing technology to safeguard their critical transmission systems against premature wear and catastrophic failure.
Maintaining optimal lubrication is a critical factor in ensuring the longevity and efficiency of any rotational system. The UC Series insert bearings are meticulously pre-lubricated at the factory using high-quality industrial-grade grease, formulated to withstand extreme pressures and temperature fluctuations. This premium pre-lubrication allows the bearings to operate seamlessly right out of the box, supporting long-term, maintenance-free operation for facilities looking to reduce manual upkeep. Furthermore, the standardized outer spherical design is equipped with a precisely positioned oil hole, offering operators the flexibility of convenient re-lubrication when operating under exceptionally strenuous conditions. This dual-approach empowers maintenance teams to drastically lower equipment operation and maintenance costs. By ensuring that the rolling elements are continuously protected by an optimal film of grease, friction is minimized, thermal degradation is prevented, and the entire transmission system operates with unparalleled smoothness and reliability over extended periods.
Time is a critical asset in industrial manufacturing, and complex component assembly can lead to costly operational downtime. The UC Series addresses this challenge through a standardized outer spherical design that guarantees perfect interchangeability with standard bearing housings, including UCP, UCF, and UCT configurations. This universal adaptability ensures swift equipment upgrades. Key installation advantages include:
The intuitive installation process significantly reduces the labor hours required for system assembly, allowing engineering teams to restore equipment functionality rapidly. This plug-and-play capability is an invaluable asset for large-scale production facilities seeking to optimize their maintenance schedules and improve overall mechanical integration efficiency.
High-speed mechanical applications demand components that can deliver unwavering stability without generating excessive acoustic or vibrational disturbances. The manufacturing process of the UC Series insert bearings strictly adheres to rigorous ISO international tolerance standards, ensuring that every unit produced meets exceptional dimensional accuracy. This uncompromising commitment to precision engineering results in remarkably low noise and minimal vibration during operation, which is crucial for maintaining the structural integrity of surrounding machine components. The superior internal geometry and perfectly balanced rolling elements enable these bearings to deliver ultimate rotational stability, even when subjected to demanding speeds of up to 4500 revolutions per minute. Such high-speed reliability ensures that automated production lines and rapid material handling systems can function at peak capacity without the risk of thermal runaway or mechanical deviation. Procurement professionals prioritizing consistent performance will find that these precision-crafted bearings elevate the operational standards of their entire machinery portfolio.
The versatility and robust construction of the UC Series make it an indispensable component across a multitude of demanding industrial sectors. These insert bearings are widely integrated into critical operational environments:
Furthermore, their precision and low-vibration characteristics make them highly suitable for textile machinery, industrial ventilation fans, and sophisticated automated production lines. Across all these diverse applications, the bearings serve as the critical nexus of heavy-duty transmission systems, delivering the continuous, reliable power transfer necessary to drive industrial productivity and operational success on a global scale.
In today's highly interconnected industrial landscape, securing a reliable and compliant supply chain is paramount for large-scale manufacturing operations. The entire portfolio of UC Series insert bearings is produced under a stringent ISO9001 certified quality management system, guaranteeing that every batch meets the highest international standards for safety, durability, and performance. This comprehensive certification provides purchasing departments with the assurance they need to meet stringent global industrial compliance requirements. Beyond standard product offerings, our manufacturing infrastructure is fully equipped to support extensive OEM customization, allowing for tailored bearing solutions that match specific mechanical blueprints and operational demands. Coupled with our capacity for stable, high-volume production, we ensure that global partners receive consistent and timely deliveries, mitigating the risks associated with supply chain disruptions. By prioritizing transparent quality control and scalable manufacturing capabilities, we empower international enterprises to build more resilient, efficient, and profitable industrial ecosystems.
