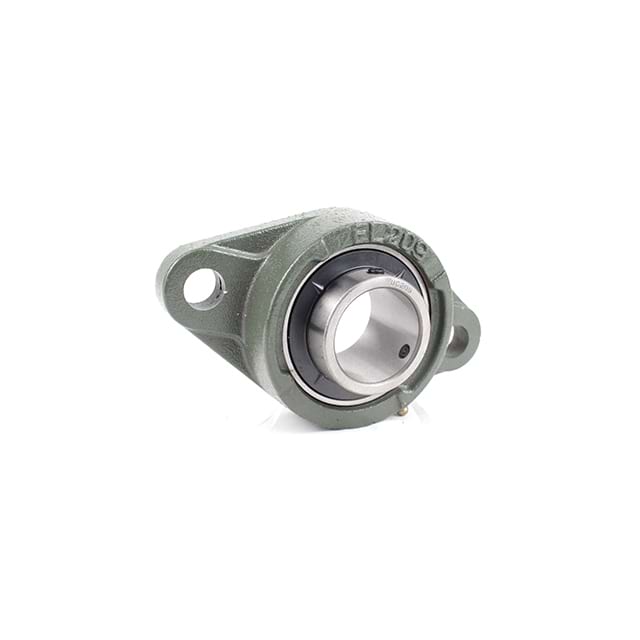

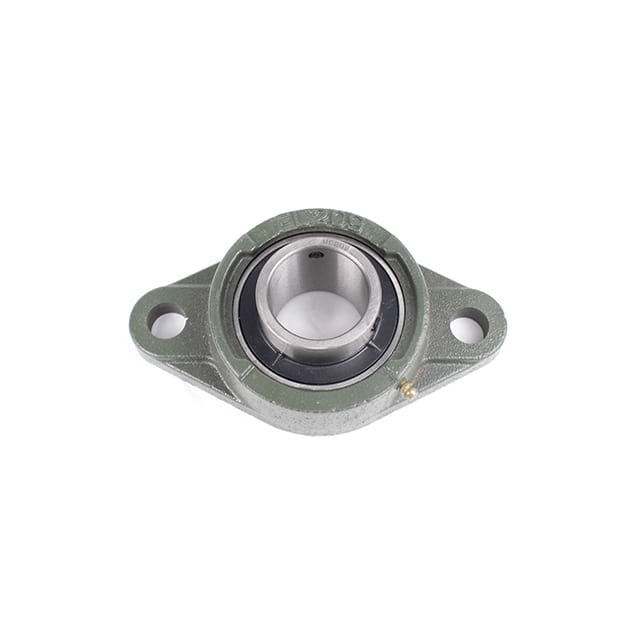

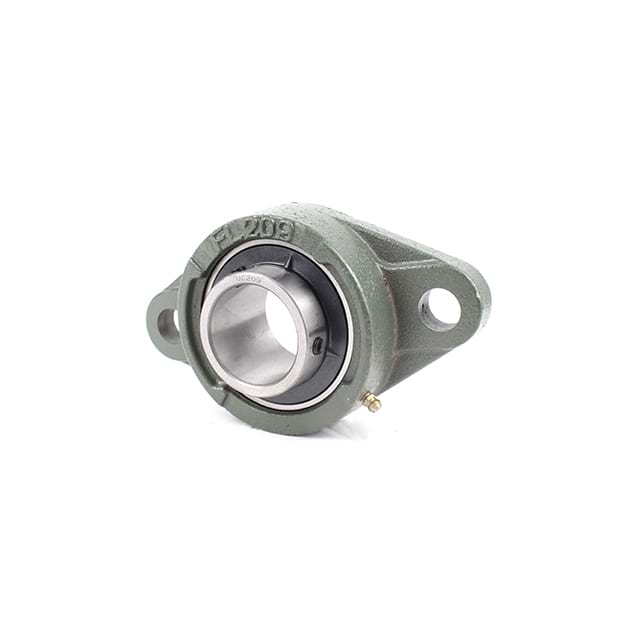

The UCFL Series represents a fundamental component for industrial transmission systems requiring exceptional load management and structural integrity. Engineered with a focus on enduring extreme operational environments, these flange bearings integrate a high-strength cast iron housing with premium bearing steel balls. This specific material combination, supported by a stamped steel cage, delivers superior wear resistance and maintains dimensional stability even under continuous mechanical stress. Industrial operators rely on this construction to minimize unexpected equipment failures and extend the operational lifecycle of their machinery.
Beyond the foundational materials, the performance metrics of the UCFL Series are optimized for demanding applications. The internal geometry is specifically calibrated to accommodate high radial dynamic and static loads, ensuring that heavy rotational forces are distributed evenly across the bearing surfaces. When maintained with standard grease lubrication, these units support highly efficient and stable high-speed rotation. This capability is essential for production environments where equipment must run continuously without thermal degradation or excessive friction. By prioritizing load capacity and rotational efficiency, this series provides a dependable solution for complex mechanical assemblies that cannot compromise on performance.
Procurement professionals and engineering teams evaluate components based on their impact on total cost of ownership. The material density of the cast iron housing combined with the specialized steel internal components directly translates to fewer replacement cycles. Furthermore, the stamped steel cage plays a vital role in maintaining precise ball spacing, which prevents localized wear and ensures consistent load bearing over thousands of hours of operation.
Achieving reliable mechanical transmission requires strict adherence to manufacturing tolerances. The UCFL200 units are manufactured to ISO Class 0 precision standards, incorporating CN standard internal clearance. This exact clearance configuration is critical for accommodating thermal expansion during operation while preventing excessive play. As a result, the bearing operates with minimal vibration and significantly reduced noise levels, which is vital for maintaining the accuracy of the surrounding mechanical framework and protecting adjacent components from resonant damage.
Consistency across large-scale deployments is guaranteed through rigorous quality control protocols. Before assembly, all raw materials undergo strict metallurgical screening to verify structural integrity. The finished units are then subjected to comprehensive laboratory fatigue life testing, simulating the exact stresses they will face in the field. A complete factory inspection process ensures that every single unit meets the specified dimensional and performance criteria, providing procurement teams with absolute confidence in batch reliability.
The versatility of the diamond-shaped outer spherical design makes it highly adaptable across multiple heavy-duty sectors. These units are frequently integrated into agricultural machinery, construction equipment, mining conveyors, automated production lines, and heavy truck transmission systems. The two-bolt diamond flange configuration is specifically designed for mounting in areas where space is restricted, offering a secure fit without requiring a massive footprint.
Installation and ongoing maintenance are streamlined through the integration of a set screw locking mechanism on the extended inner ring. This design allows technicians to secure the bearing to the shaft quickly and accurately, drastically reducing initial setup time. Additionally, the strategic placement of lubrication fittings ensures that routine maintenance can be performed efficiently, lowering long-term labor costs and ensuring the bearing remains properly greased throughout its service life.
The ability to lock the shaft firmly using the set screws prevents slippage and fretting corrosion, which are common causes of premature shaft failure. This straightforward mounting procedure means that field replacements can be executed with standard hand tools, minimizing equipment downtime. The overall design philosophy centers on maximizing operational uptime while keeping maintenance interventions as brief and effective as possible.

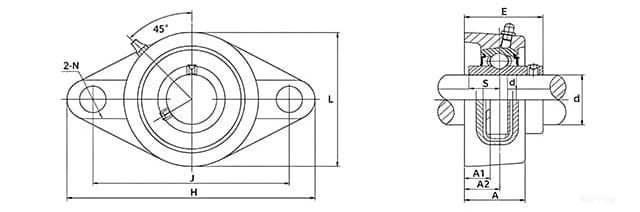

Shaft Diameter (d) | Product Model | Dimensions (mm) | Bolt Specification | Bearing Model Number | Seat Model | Weight | |||||||||
(min. ) | (mm) | H | J | L | A2 | A1 | A | E | N | S | |||||
1/2 5/6 T1/16 314 | 12 15 17 20 | UCFL201 201-8 202 203-40 Z06 208-11 204-12 206 | 115 | 90 | 60 | 15 | 11 | 235 | 35.5 | 12 | 12.7 | MIO | UC201 201-8 202 203-10 205 206-11 204-12 204 | FL204 | 0.51 |
1/6 15/16 1 | 25 | UCFL200-30 203-75 20S 205-16 | 180 | 99 | 68 | 16 | 16 | 22 | 33.7 | 16 | 14,3 | M14 | UC209-24 208-75 205 206-16 | FL205 | 0.00 |
1-1/8 1-5/16 1-1/4 | 30 | UCFL209-40 206 206-39 205-20 | 146 | 117 | B0 | 18 | 15 | 51 | 40.2 | 16 | 15,9 | M14 | UC208-38 206 206-19 206~20 | FL206 | 0.50 |
1-74 1-8m6 1510 1-7/16 | 35 | UCFL200-20 202-27 207-22 207 202-23 | 161 | 130 | 90 | 19 | 15 | 34 | 44.4 | 16 | 17.5 | M14 | UC200-20 202-27 207-22 207 207~33 | FL207 | 1.30 |
17/9 1-3/16 | 40 | UCFL206-30 208-25 208 | 125 | 144 | 100 | 21 | 14 | 55 | 50.2 | 16 | 19 | M14 | UC200-30 203-25 208 | FL208 | 1.50 |
15/6 1-1/A6 1514 | 45 | UCFL200-25 209-27 209-28 200 | 186 | 146 | 100 | 22 | 16 | 53 | 52.2 | 19 | 19 | M14 | UC209-26 209-27 209-36 200 | FL209 | 1.50 |
1-718 1-16/116 2 | 50 | UCFL200-30 210-51 210 210-52 | 197 | 157 | 115 | 22 | 16 | 40 | 54.6 | 19 | 19 | M16 | UC210-30 210-21 210 210-52 | FL210 | 2.30 |
2 2-18 2.3/16 | 55 | UCFL210-22 21]-36 ZI⁷ 21-55 | 224 | 184 | 160 | 25 | 18 | 45 | 55.4 | 19 | 22.2 | M16 | UC210-32 211-54 211 213-55 | FL211 | 3.00 |
2-1/4 2.316 3-7N6 | 40 | UCFL212-86 Z13 Z12-88 216-36 | 250 | 200 | 140 | 29 | 16 | 46 | 35.7 | 23 | 25,4 | M20 | UC21236 Z12 Z18-58 210-39 | FL212 | 40 |
2-114 | 65 | UCFL219-40 215 | 235 | 210 | 185 | 30 | 20 | 50 | 66.7 | 23 | 25.4 | M20 | UC219-Q0 ZIS | FL215 | 50 |
2-314 | 70 | UCFL210-40 Z16 | 265 | 216 | 160 | 31 | 20 | 54 | 754 | 25 | 30.2 | M20 | UC216-44 216 | FL214 | 5,6 |
2-1516 3 | 75 | UCFL215 216 216-48 | 278 | 223 | 160 | 34 | 22 | 55 | 76.5 | 25 | 33.3 | M20 | UC215 215 215-48 | FL215 | 6.2 |
80 | UCFL216 | 230 | 235 | 1800 | 34 | 22 | 36 | 85.5 | 25 | 35.3 | M22 | UC216 | FL216 | 7.8 | |
3-114 | 25 | UCFL21G-53 207 | 200 | 246 | 100 | 36 | 22 | 65 | 87.4 | 25 | 34.1 | M22 | UC213-52 217 | FL217 | 9.8 |
3-1/2 | S0 | UCFL216-56 218 | 200 | 245 | 200 | 30 | 26 | 46 | 95.3 | 25 | 39.7 | M22 | UC.216-56 210 | FL216 | 15.4 |
Evaluating the comprehensive dimensional data provided in the technical specifications highlights the extensive range of shaft compatibilities and housing configurations available within the UCFL Series. Proper selection based on exact shaft diameter, bolt specifications, and dynamic load requirements is essential for optimizing mechanical performance. The standardized dimensions ensure that these flange bearings can serve as direct drop-in replacements for existing infrastructure, eliminating the need for costly modifications to machinery frameworks.
Furthermore, the specific weight and structural footprint of each model, from the compact UCFL201 to the heavy-duty UCFL218, allow engineering teams to calculate precise load distributions for their unique applications. The integration of these bearings into industrial systems directly contributes to stabilized rotational dynamics, reduced energy consumption through lowered friction, and a measurable decrease in maintenance-related downtime. By standardizing on this precisely engineered series, industrial facilities can maintain a leaner inventory of replacement parts while ensuring their critical transmission systems operate at peak efficiency.
